Precision Mold Making

The application of mold flow analysis can meet the needs of different product development and design...

Precision Mold Making


The application of mold flow analysis can meet the needs of different product development and design. Through high-speed carving and cutting (30000rpm), precision mirror discharge, high-precision wire cutting process technology, combined with 3D CMM(Coordinate Measuring Machine), high-precision, high quality molds are manufactured.

A. We can meet various product requirements to create a variety of mold surface processing specifications, from general textures to laser etched complex surface textures and patterns, water droplets pattern, ripple wave lines and other special design textures. Various levels of polishing, including mirror treatment, optical mirror treatment, glare mirror, electroformed mirror are also possible.

B.High-speed carving and cutting (30000rpm) technology can reach polishing similar to chemical mechanical polishing, allowing high precision and highly polished finish without distortion.

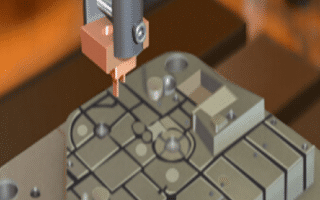

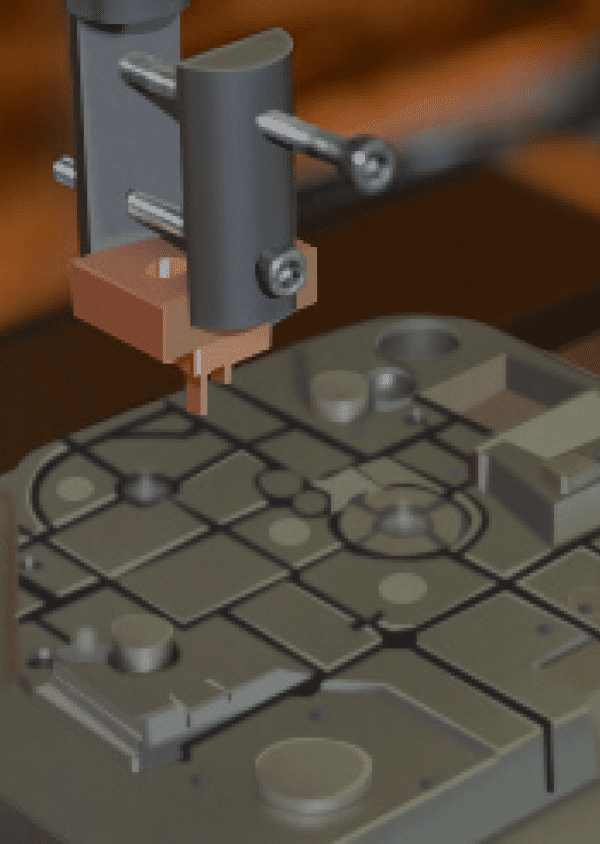

C.Precision mirror surface EDM, in response to a variety of complex geometric requirements, can directly create a high precision, highly polished mirror surface, with all kinds of patterns and textures, to form the perfect combination of design requirements and dimensional requirements of the product.

D.High-precision wire-cutting process allows many of the original complex angular work, through high-precision wire cutting to achieve seamless splicing, omitting the cumbersome and time-consuming discharge for these type of work.

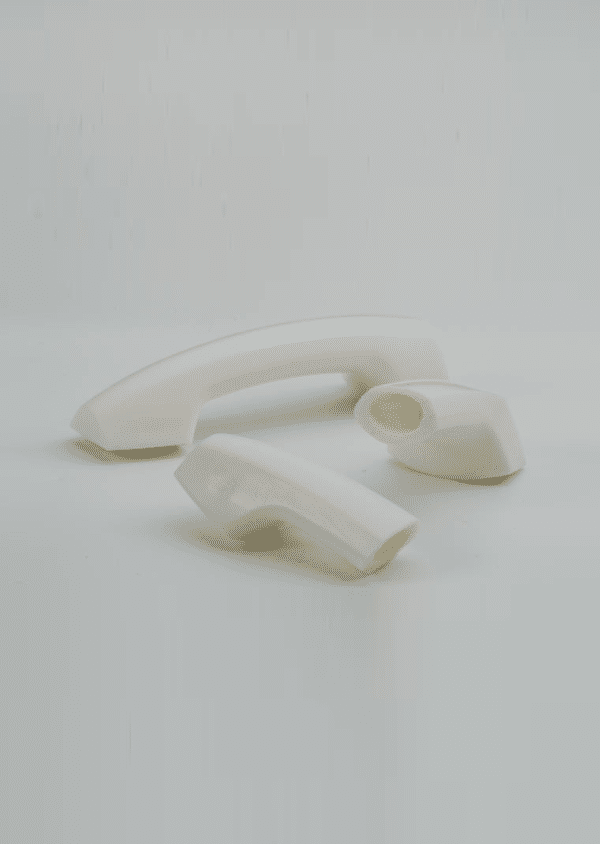

Special Material Processing

We have mold making and injection-molding technology for special materials, with deep understanding in special plastic engineering. For example...

Special Material Processing


We have mold making and injection-molding technology for special materials, with deep understanding in special plastic engineering. For example, we can make tools and injection mold for high insulation Bakelite material. We are capable of providing tooling and production for PPSU, a special material with resistance to high temperature, PPS, and fire-proof UL rated V0 materials and a variety of thermoplastic elastomer (TPE) plastic material with different hardness.
We have more than 30 years of experience in mold manufacturing industry, cooperating with customers to complete tooling and production parts spanning hundreds of different materials. Different materials have different properties, so the die steel and molding parameters are very different. We reasonable apply our experience and technology to achieve customer’s special needs.

1. PPSU is a material with temperature resistance up to 220 C, offering exceptional rigidity and toughness. Because of its own special nature, mold steel needs special hardening. The material is dry and the molding temperature needs to reach a high point. However, this material is suitable for the production of heat resistant instrumentation and medical machinery, anti-wear-resistant modules and insulation, and it is very popular with customers. We have worked with the customer to successfully develop a tracking instrument cover for special environmental conditions.

2. Bakelite has high insulation, heat resistance, corrosion resistance and greater mechanical strength properties. So it is often used in the manufacture of electronics parts, such as switch, lamp base, earphone, phone case, instrument case and so on. We have made transformers part switches for this material.

3. Thermoplastic elastomer (TPE) plastic materials, such as TPE,TPU,TPV etc. are also commonly used for outer parts of the cover parts as a buffer and/or aesthetic function, but also allow it to wrap in a waterproof enclosure to get sealing effect.

PPS,PA series products and PA series plus fiber, PBT and plus fiber materials, PMMA,POM,PC,PC/ABS,GPPS and so on. These materials are used as specialty plastic injection and processing materials.

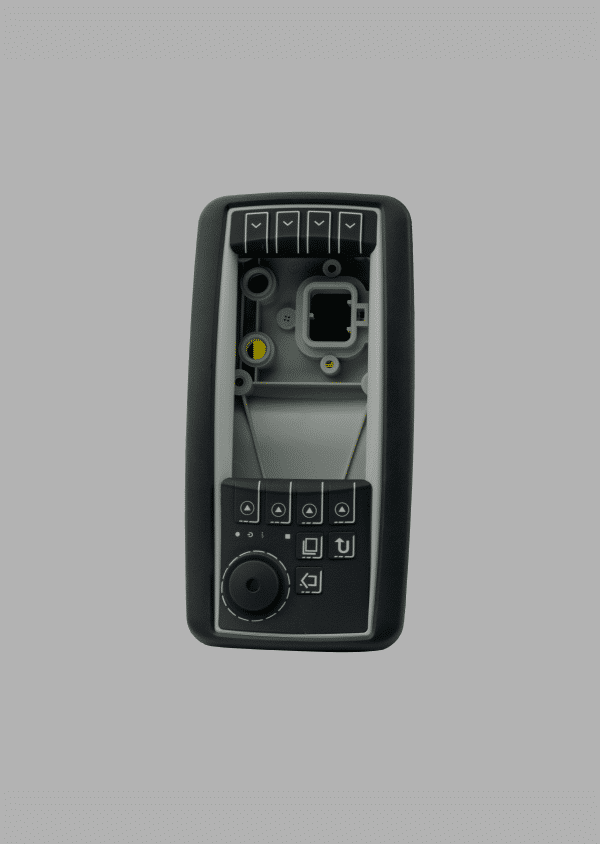

High Difficulty Double Injection and Multi-shot Technology

We have innovative injection molding technology which could combine two, three...

High Difficulty Double Injection and Multi-shot Technology


We have innovative injection molding technology which could combine two, three, four or more colors or materials in one product. So that products can meet the multi-color and mult-material requirements of a specific part while also meeting the diverse functional requirements.
Twin-shot mold can use two kinds of plastic materials in the same injection molding machine, forming two times, but the products are only molded once. This molding process is also called double injection molding, using a specialized double-color injection molding machine and one set of mold to complete two kinds of material injection.
Our company has different tonnage and sizes of two-shot injection molding machines. These machines can produce double injection parts ranging from smaller pieces such as mini USB cover to large pieces that can complete 350mm length of the instrument shell. Our company already has a very mature technology in this field, well known in the industry for our superior double injection products. In addition, we not only produce two-color products, but also achieve three-color and multi-material molding, becoming the customers’ first choice as their complex high-difficulty and multi-color housing and parts supplier.
The common double injection product has soft plastic material coated on the periphery of the hard plastic material. However, we can provide the parts which two kinds of hard plastic parts combined with each other, and also adopt this technology to combine high-transparent windows with rigid plastic in a product.

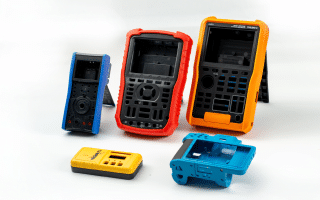

Silicone Rubber / Plastic / Metal Composite Products

We have many years experience specializing in manufacturing of silicone rubber...

Silicone Rubber / Plastic / Metal Composite Products


We have many years experience specializing in manufacturing of silicone rubber, plastic, and metal composite products. We can provide high precision, high quality composite products such as medical equipment keypads and related parts, security equipment components, and consumer electronics components.
Because silicone rubber and plastic texture are different, they are generally used in different application field. Since the late 1990s, our company has offered a variety of different size composite keypads according to customer’s demand. Gradually, the metal & silicone rubber keyface became a preferred choice for customers than plastic. The updated design makes the key more durable and looks more upscale. In addition, customers are inclined to combine light hardware with plastic materials in order to develop a more practical shell, such as medical equipment, and consumer electronic parts and housings.

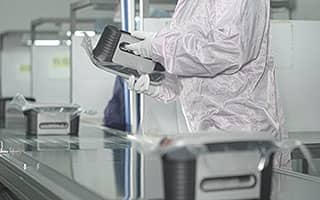

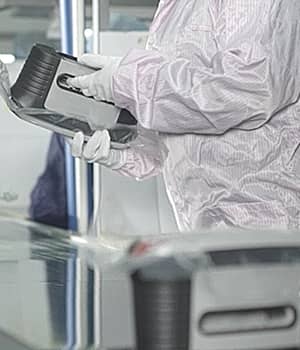

Full Assembly and Semi-Process Assembly Capability

We are a “One-Stop Service” Solution Provider, Our factory is equipped with ...

Full Assembly and Semi-Process Assembly Capability


We are a “One-Stop Service” Solution Provider, Our factory is equipped with capability of whole device assembly, providing a complete manufacturing solution according to client’s requirement. Additionally, we are capable of providing semi-process assembly. While offering assembly suggestions and advices during product development. After parts manufacturing, the customers only need to do the core assembly before shipping the final product to their customer. It would save time and make production of the final product easier.
We have professional process control capability, adopting statistical techniques to evaluate the process variability and the process of advanced product quality plan, bringing down the process variability to a minimum. We can achieve this by using control chart, frequency distribution chart, and other statistical survey. The steps as following :

1. Determine the quality characteristics that can represent the process capability.

2. Make samples drawn from process to get the specificity.

3. Figure out the average value and standard deviation ( frequency distribution chart).

4. Find out the abnormal phenomena, and considering whether it is well worth taking actions or not.

5. Take actions to abnormal phenomena.

Furthermore , our factory well equipped with various measuring equipments which provides dimension checking , manufacturing verification, and high-end verification for each process. Beyond that we have very skillful assembly engineers providing not only the dimension guarantee, but also assembly verification, finding out the problems of assembly and sending feedback to designing team for solving problems.

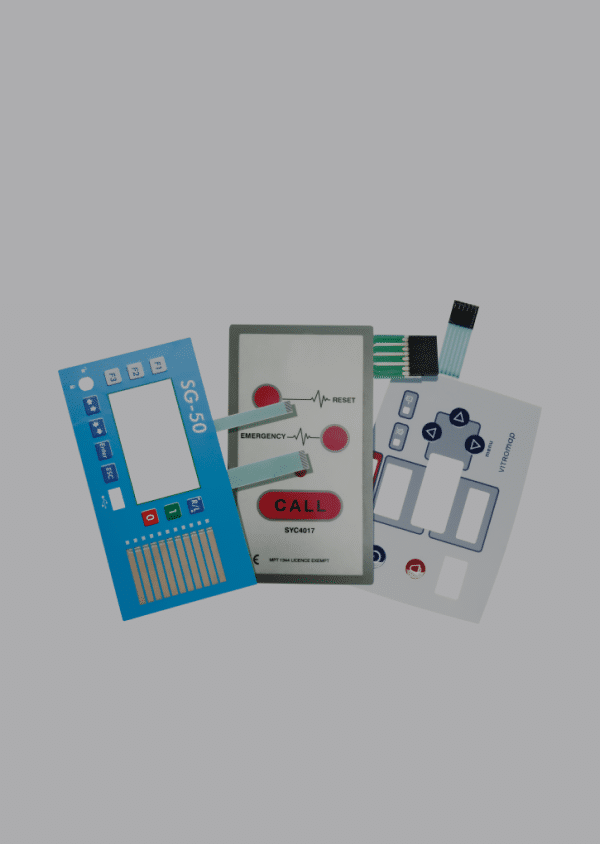

Design and manufacture for Industrial Grade Touch Panel

With precise positioning technology in CCD printing intelligence, polychromatic...

Design and manufacture for Industrial Grade Touch Panel:


With precise positioning technology in CCD printing intelligence, polychromatic color, printing technology, Flexible PCBA , SMT technology, we are able to do oversized(diameter around 500mm) touch panel products and diverse TP products. These products are based on combination techniques of multilayered structure, such as the designing and manufacturing of membrane switches + rubber keypad + FPC etc, while offering good stability and weather resistance for touch panel products.
There are 4 kinds of touch panels based on different technology principles :

1.Resistive touch panel

2.Capacitive touch panel

3.Infrared technology touch panel

4.Surface acoustic wave technology touch panel

Each kind of touch panel has its own merit and issues.But, we are able toprovide designing service and customized products according to designing scheme from customers.

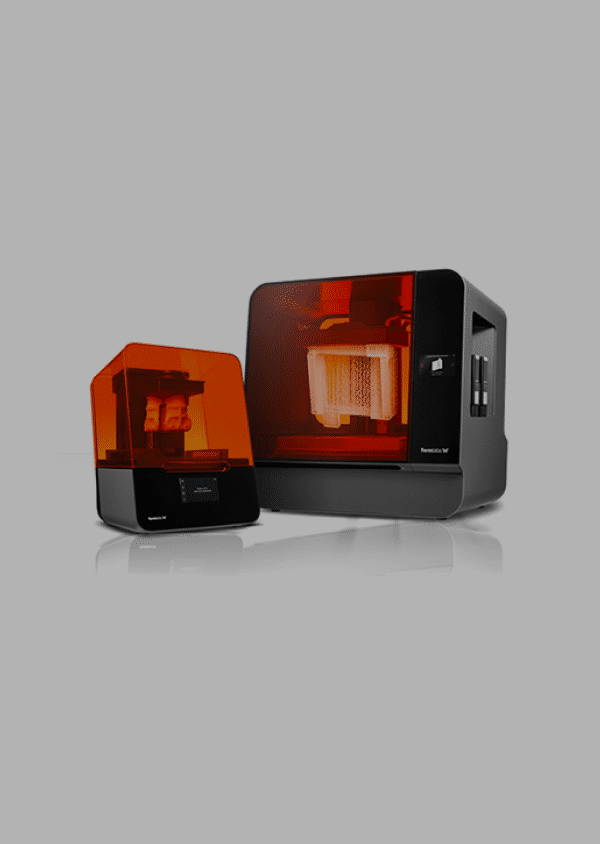

3D Printing

We have the technology through 3D printing rapid verification to shorten the distance from design....

3D Printing


We have the technology through 3D printing rapid verification to shorten the distance from design to product, which can provide customers with special shaped metal mold printing and mirror surface metal mold printing. The subtle features can reach 0.02mm and control printing for the pore sized air-permeable mold parts.
At present, the combination of 3D printing and mold design technology special applications are:

1. High-gloss mirror surface metal mold printing, subtle features can reach 0.02mm.

2. Controllable pore size of the porous metal mold parts print.

3.It can quickly verify and shorten the process of design from the actual product by 3D printing. High precision 3D printing can effectively test assembly of different parts before tooling is initiated to save time and costs.

4. The undercut made by 3D printing is more economical, and does not require complex process layout with a variety of processes in series.

Mold Design

We use the mold design wizard database which is provided by NX to quickly call standard parts. And meanwhile, we make full use of Moldex 3D dynamic material database to...

Mold Design


We use the mold design wizard database which is provided by NX to quickly call standard parts. And meanwhile, we make full use of Moldex 3D dynamic material database to fully understand the characteristics of composite materials at different pressures, temperatures and speeds, making the application of composite plastic materials more practical.

Our company specializes in developing and designing different molds, from product design to manufacturing feasibility analysis, eg. product strength, assembly feasibility analysis, injection molding analysis (mold flow analysis), the final mold body movement analysis, mold structure strength analysis. Therefore, previously difficulties and detected problems can be prevented in advance, thereby shorten the development cycle and reduce unnecessary time and testing costs.

The general mold design applications are:

1. Mold Mechanism 3D Dynamic Anti-interference Simulation.

2. The output of mold flow analysis is used as the input of mold structure strength analysis, so as to verify in advance the strength and economic benefit borderline value of mold structure and production load under pressure.

3. For the complex higher body movements of the mold, we can use 3D solid geometry motion simulation, inertia analysis and dynamic strength analysis.

4. Use the mold design wizard database provided by NX to quickly call standard parts in general and shorten the designer's time spent on drawing for standard parts.

5. Through the Moldex 3D dynamic material database, we can fully know the various characteristics of the composite materials under different pressures, temperatures and speeds, and make the application of the composite plastic materials more practical.

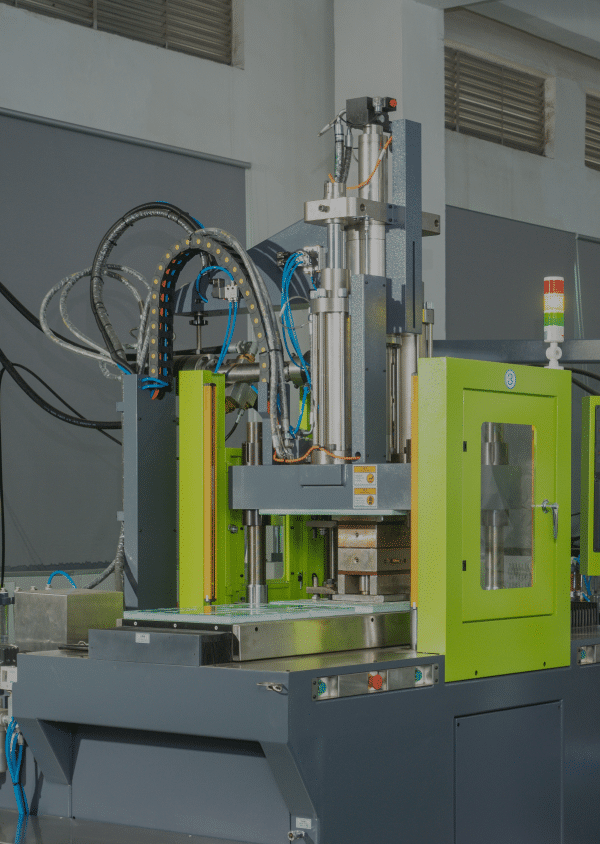

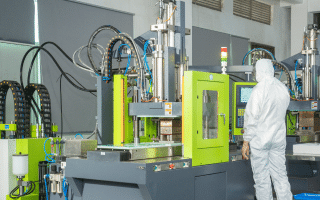

Liquid Silicone Rubber Injection:

We have molding technology for liquid silicone rubber (LSR) from 0 to 80 shore A. We can use liquid silicone rubber to overmold plastic...

Liquid Silicone Rubber Injection:


We have molding technology for liquid silicone rubber (LSR) from 0 to 80 shore A. We can use liquid silicone rubber to overmold plastic, metal inserts and special materials. LSR products can be widely used in baby products, medical supplies, food grade kitchen products, automobile parts, and electronic products.
In recent years, liquid silicone rubber products have been used more and more to replace plastic and compression molded rubber products. Because liquid silicone rubber has advantages of good mobility, easy to vulcanize, safe and environmental friendly, it can fully meet the food grade requirements such as silicone bottle, watchband, baby products, waistband, wearable products, and medical supplies, etc.
Our technology for liquid silicone rubber injection has reached a relatively mature stage. We can cooperate with customers to complete various kinds of electronic products. Overmolding the liquid silicone rubber with the hard plastic shell has become a main feature of our company's advanced multi-material tooling technology. LSR overmolded parts can provide high-temperature resistant performance for large-size shell industrial products while offer functional uses and add aesthetics to existing plastic housings.We have extensive experience in hot runners, needle valve cold runners, needleless cold runners, and mold vacuum technology. We use mold heating principles to increase efficiency, reduce defective rates, and achieve precise dimensions.

Excellent equipment


Win Industry utilizes advanced precision equipments, including MAKINO high speed CNC machine, AGIECHARMILLES high finishing wire cutting machine, EDM machine, SODICK slow speed wire cutting machine, TOSHIBA injection molding machine, Liquid silicone injection equipments, guaranteeing our molds made in high precision and production parts in better quality.

More Detail

SURFACE SPECIAL TREATMENT


We have comprehensive technology for printing, laser etching, mechanical surface treatments, chemical surface treatment, as well as other surface special treatment. We can make your products meet various technical requirements.

More Detail
